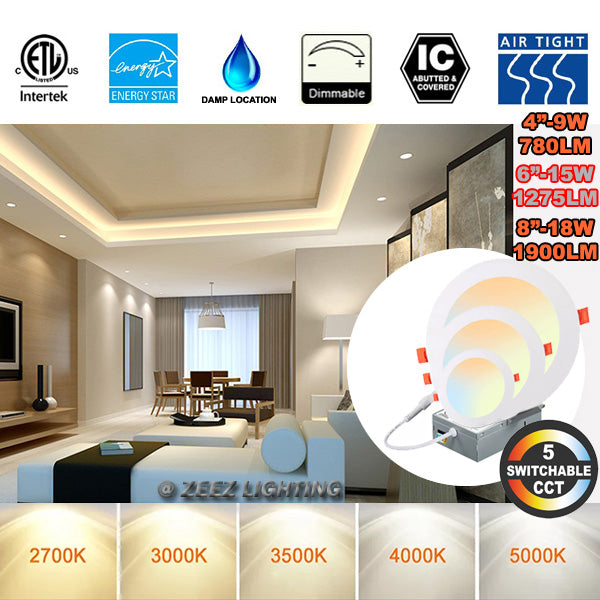

ZEEZ Lighting - 4-Inch 9W 780LM / 6-Inch 15W 1275LM / 8-Inch 18W 1900LM Selectable 5CCT Dimmable LED Recessed Light Canless Ceiling Panel Downlight w/ Junction Box ETL Listed
ZEEZ Lighting - 4-Inch 9W 780LM / 6-Inch 15W 1275LM / 8-Inch 18W 1900LM Selectable 5CCT Dimmable LED Recessed Light Canless Ceiling Panel Downlight w/ Junction Box ETL Listed
Couldn't load pickup availability
Share
ZEEZ Lighting - 4-Inch 9W 780LM / 6-Inch 15W 1275LM / 8-Inch 18W 1900LM Selectable 5CCT Dimmable LED Recessed Light Canless Ceiling Panel Downlight w/ Junction Box ETL Listed
When you need architectural lighting design that adapts to any space, ZEEZ Lighting’s canless recessed downlights deliver unmatched versatility and performance. These fixtures are engineered to solve the common pain points of traditional recessed lighting: bulky cans that limit placement, complicated installation, and single-color temperature that forces compromises. Instead, ZEEZ offers a unified solution that works seamlessly across residential and commercial applications.

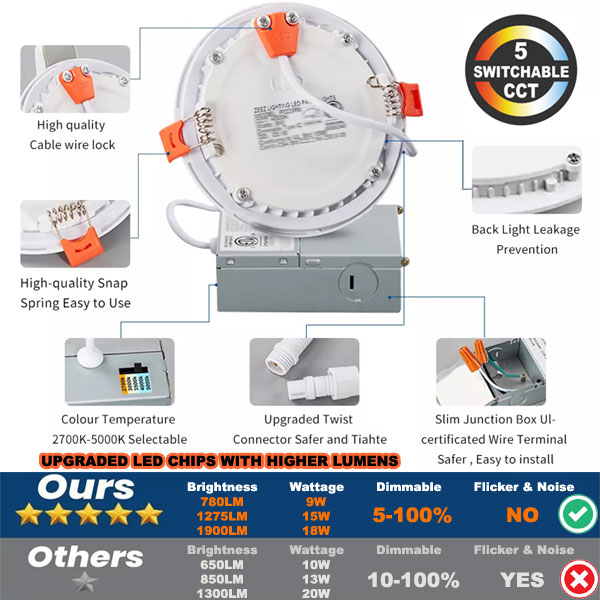

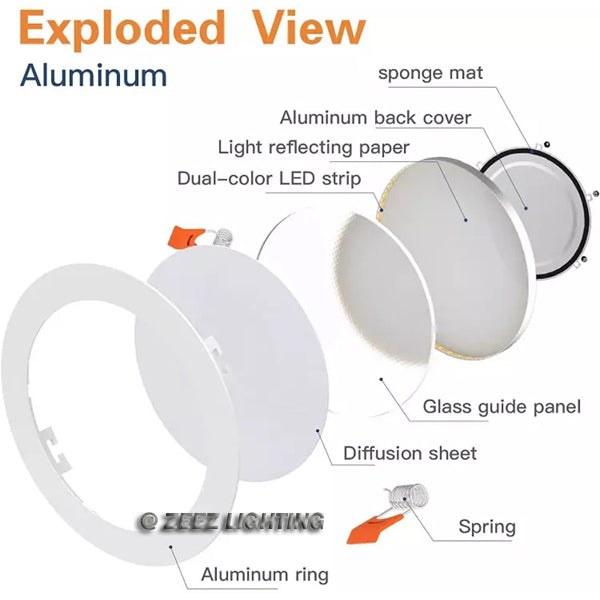

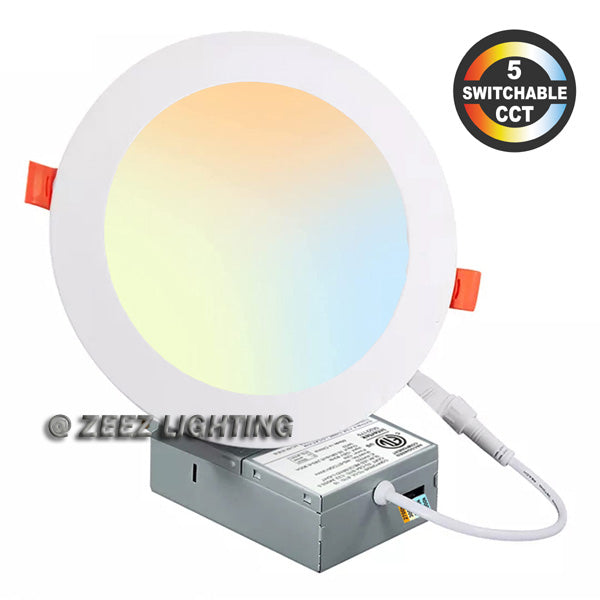

The secret lies in the canless construction. By eliminating the separate housing, we reduce the fixture depth to just 1.5 inches, allowing installation in shallow ceiling plenums, furr-downs, or even between joists with minimal clearance. The built-in junction box, compliant with NEC 410.10(C), simplifies wiring—no need for separate boxes or fishing wires through tight spaces. For remodelers, the spring-loaded clips secure the fixture into existing 4”, 6”, or 8” cutouts without needing access above the ceiling.

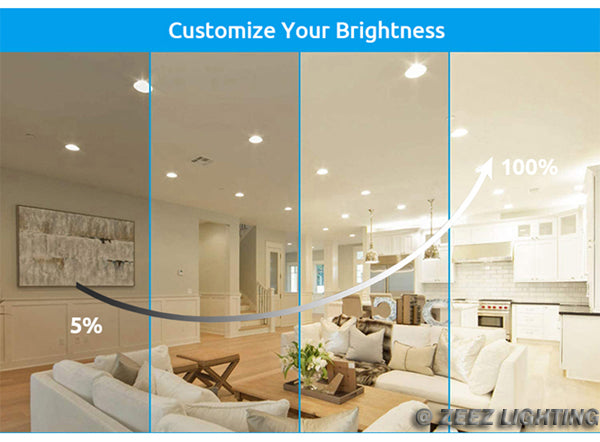

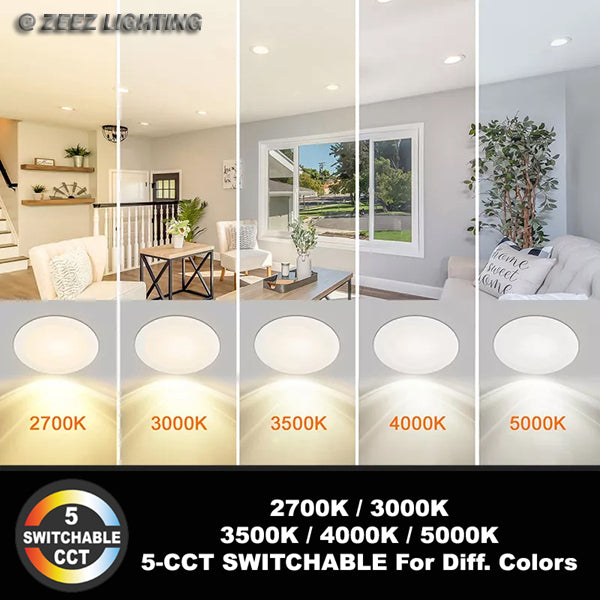

Light quality is paramount. The selectable 5CCT switch lets you choose 2700K (warm), 3000K (soft), 3500K (neutral), 4000K (cool), or 5000K (daylight) to match the desired ambiance. With a CRI ≥ 90, colors appear vibrant and natural—critical for kitchens, retail displays, or art galleries. Smooth dimming from 100% to 5% works with leading-edge and trailing-edge dimmers, eliminating flicker and buzz. Each size delivers high lumen output: 780 lm (4”), 1275 lm (6”), and 1900 lm (8”), replacing up to 150W incandescent while consuming only 9W–18W.

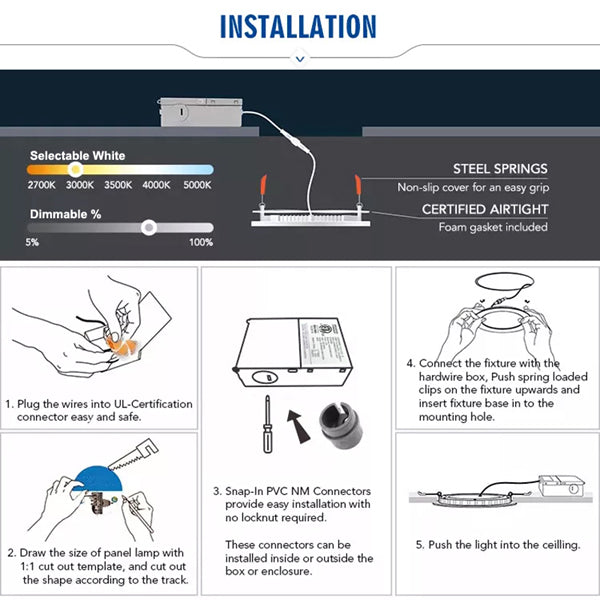

Installation is straightforward: cut a hole, connect the quick-connect wiring harness, push the fixture up, and clip it in place. The IC-rated and airtight design allows direct contact with insulation, reducing energy loss and meeting building codes for air leakage. Damp-location rating makes these lights suitable for bathrooms, covered patios, or laundry rooms.
For projects requiring consistent, high-performance lighting without the hassle of cans, ZEEZ downlights are the smart choice. explore our full collection to see complementary trims, controls, and smart options.
Product Specifications
| Feature | Specification |
|---|---|
| Sizes Available | 4-inch, 6-inch, 8-inch |
| Wattage | 9W (4”), 15W (6”), 18W (8”) |
| Lumen Output | 780 lm (4”), 1275 lm (6”), 1900 lm (8”) |
| Color Temperature | Selectable 5CCT: 2700K, 3000K, 3500K, 4000K, 5000K |
| Dimming Range | 100% – 5% (trailing/leading edge dimmers) |
| CRI | ≥ 90 |
| Voltage | 120V AC, 60Hz |
| Housing Material | Die-cast aluminum, white polycarbonate trim |
| Cutout Size | 4.5” (4”), 6.5” (6”), 8.5” (8”) |
| Fixture Depth | 1.5 inches (all sizes) |
| Rating | IC-rated, Airtight, Damp-location |
| Listing | ETL Listed |
| Warranty | 5-year limited |
Expert Q&A
Q: How does the ZEEZ canless design compare to traditional recessed lights?
A: Traditional recessed lights require a separate can housing that must be installed before drywall. ZEEZ’s canless design integrates everything into a 1.5-inch thick fixture, eliminating the can. This speeds up installation, allows use in shallow ceilings, and improves insulation contact for better energy performance.
Q: Can I install these lights in a bathroom or covered porch?
A: Yes. These downlights are damp-location rated and ETL-listed for humid environments. The sealed gasket prevents moisture ingress, making them suitable for bathrooms, covered patios, and laundry rooms. Always verify local codes for specific requirements.
Q: What warranty does ZEEZ Lighting offer?
A: ZEEZ provides a 5-year limited warranty covering defects in materials and workmanship. If an issue arises within the warranty period, contact ZEEZ customer support for a replacement. The ETL listing and robust LED driver ensure long-term reliability.
For engineers and electricians who demand precision: ZEEZ canless downlights combine thermal management excellence with electrical compliance. The die-cast aluminum heatsink efficiently dissipates heat from the SMD LED array, ensuring junction temperature stays below 85°C at 120V line voltage—critical for maintaining 50,000-hour lifespan. The integrated constant-current driver delivers 0-10V dimming compatibility with 5% minimum, eliminating flicker across a wide dimmer range. Selectable CCT is achieved via a DIP switch on the driver, not through PWM modulation, preserving color stability. The junction box meets NEC 410.10(C) for direct wiring without a separate box, and the IC-rated airtight gasket prevents air infiltration while allowing insulation contact. Damp-location rating ensures operation in 90% RH environments. For retrofit work, the torsion springs accommodate drywall thicknesses up to 1 inch. This is solid-state lighting engineering optimized for commercial lighting specifications and energy code compliance. Explore the technical details of our full collection for advanced control options.
Product Specifications
| Feature | Specification |
|---|---|
| LED Type | SMD 2835, 5000K-2700K bin |
| Driver Topology | Constant current, non-isolated |
| Input Voltage | 120V AC ±10%, 60Hz |
| Power Factor | >0.9 |
| THD | <20% |
| Dimming Protocol | Phase-cut (triac), 5-100% |
| CRI | ≥90 (R9 >50) |
| SDCM | ≤3 (MacAdam ellipse) |
| L70 Lifespan | 50,000 hours |
| Ambient Temp | -20°C to 40°C |
| IP Rating | IP54 (damp location) |
| Mounting | Torsion spring clips, 0.5-1.0 inch ceiling |
| Weight | 0.7 lbs (4”), 1.0 lb (6”), 1.2 lbs (8”) |
| Materials | Die-cast aluminum, polycarbonate diffuser |
| Certifications | ETL (UL 1598, UL 2108), Title 24 JA8 (2019) |

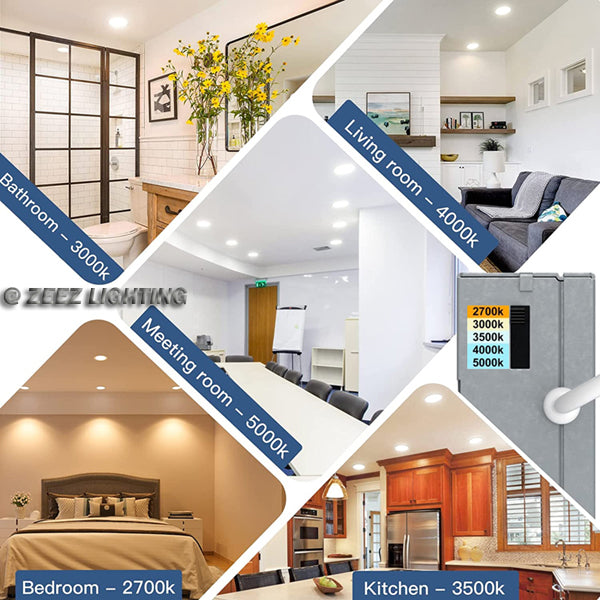

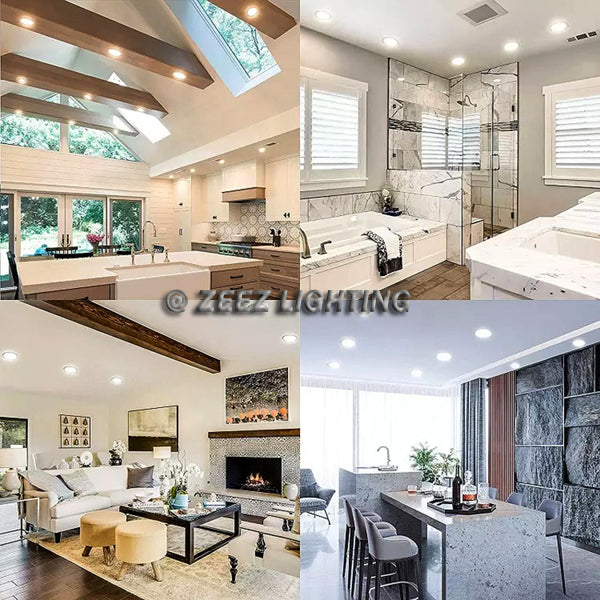

Imagine a kitchen that glows with warm, inviting light—no harsh shadows, no visible fixtures, just pure ambient illumination. ZEEZ canless downlights disappear into the ceiling, leaving only a soft circle of light that transforms the room. With selectable 5CCT, you can dial in the perfect mood: a crisp 4000K for meal prep, a cozy 2700K for dinner parties. The ultra-thin profile and white trim blend seamlessly with modern ceilings, while the 90+ CRI makes your countertops, artwork, and furnishings look vibrant and true. These lights don’t just illuminate—they create an atmosphere. The minimalist design enhances residential interior design, while the smooth dimming lets you set the scene for any occasion. Whether in a living room, bedroom, or hallway, ZEEZ adds a clean aesthetic that feels custom and refined. See how they can transform your home by exploring our full collection.
Product Specifications
| Feature | Specification |
|---|---|
| Trim Color | White (matte finish) |
| Diffuser | Frosted polycarbonate, 120° beam angle |
| Sizes | 4”, 6”, 8” (visible aperture) |
| Color Options | 5CCT selectable (2700K-5000K) |
| Dimming | Smooth, 5-100% (compatible with most dimmers) |
| Installation | Flush with ceiling, no visible screws |
| Design Note | Canless means no housing visible through diffuser |
| Room Recommendations | Kitchens, living rooms, bedrooms, hallways, bathrooms |
